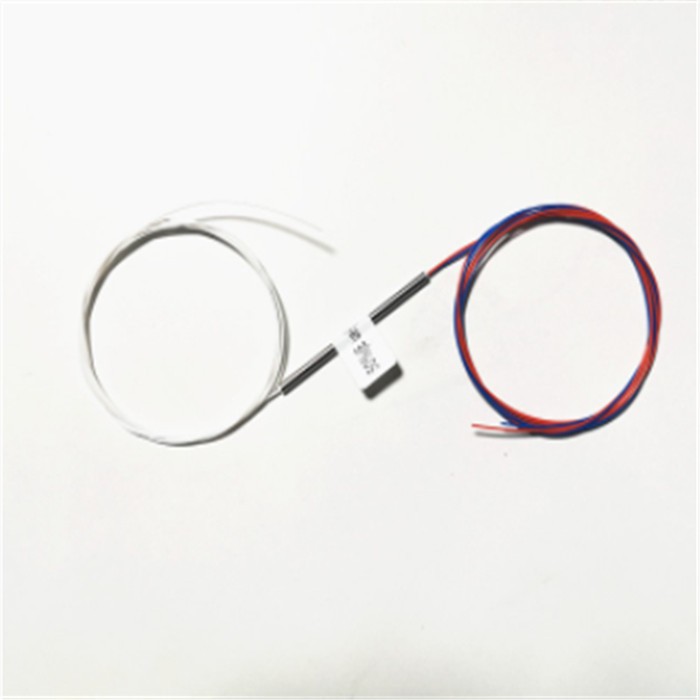

FBT Splitter 1x6 50/50 SC/APC

CY's Cassette Card Inserting Type 1x6 PLC Splitter Optical fiber With FC/APC Connector is a component that splits the optical light power from one route into different routes. Molex PLC Splitter offers premium factory controlled optical performance on a variety of connectors that enable fast, economical installation.

Send Inquiry

Description

FBT Type 6 Way SC / APC Fiber Optics Splitter , SFF type PLC Splitter

Quick Detail:

Model Number: FBT Splitter 1*6 SC / APC

Connector: SC/APC

Output Connector Type: LC ,ST,SC,FC

Length: 1m ,1.5m, 2m or customized length

Ferrule Polish: APC,UPC,PC

Packing type: box type

Application

1. FTTX networks

2. PON networks

3. CATV links

4. Data Communication

Types:

1. Basic type PLC splitter

2. SFF type PLC splitter

3. 900um Fan-out Type PLC Splitter

4. Cassette type PLC splitter Module

5. Rack type PLC splitter Module

6. Tray assembly PLC splitter Module

7. Flat Quick-Connect Termination Type PLC Splitter Module

Feature

:

1. Low Insertion Loss

2. Low Polarization Dependent Loss

3. Wide Operation Wavelength

4. Wide Operation Temperature

5. High Stability and Reliability

6. Telcordia GR-1209 and GR-1221 Compliance

7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)

Specification

Parameter	Unit		1×2	1×4	1×6	1×8	1×12	1×16	1×32	1×64
Premium Grade
Insertion Loss at 23°C	Typ.	dB	3.9	6.8	9.3	10.0	12.1	13.2	16.5	20.0
Insertion Loss at 23°C	Max	dB	4.0	7.0	9.6	10.4	12.6	13.5	16.8	20.5
Channel Uniformity	Max	dB	0.6	0.8	1.0	1.0	1.6	1.6	1.6	2.0
PDL	Typ.	dB	0.1	0.1	0.1	0.1	0.2	0.2	0.2	0.2
PDL	Max	dB	0.2	0.3	0.3	0.3	0.3	0.3	0.3	0.5
Standard Grade
Insertion Loss at 23°C	Typ.	dB	4.0	7.0	9.5	10.4	12.4	13.6	17.0	20.5
Insertion Loss at 23°C	Max	dB	4.2	7.3	10.0	10.6	12.8	13.8	17.1	20.8
Channel Uniformity	Max	dB	0.6	0.8	1.0	1.0	1.0	1.4	1.6	2.0
PDL	Typ.	dB	0.1	0.1	0.1	0.1	0.2	0.2	0.2	0.3
PDL	Max	dB	0.2	0.3	0.3	0.2	0.3	0.3	0.3	0.5
Return Loss	Min	dB	55 (Premium Grade)/50 (Standard Grade)
Directivity	Min	dB	55
Operation Wavelength	nm		1260~1650
Operation Temperature	°C		-4-~+85
Storage Temperature	°C		-4-~+85
Fiber Type	-		G.657A or Customized

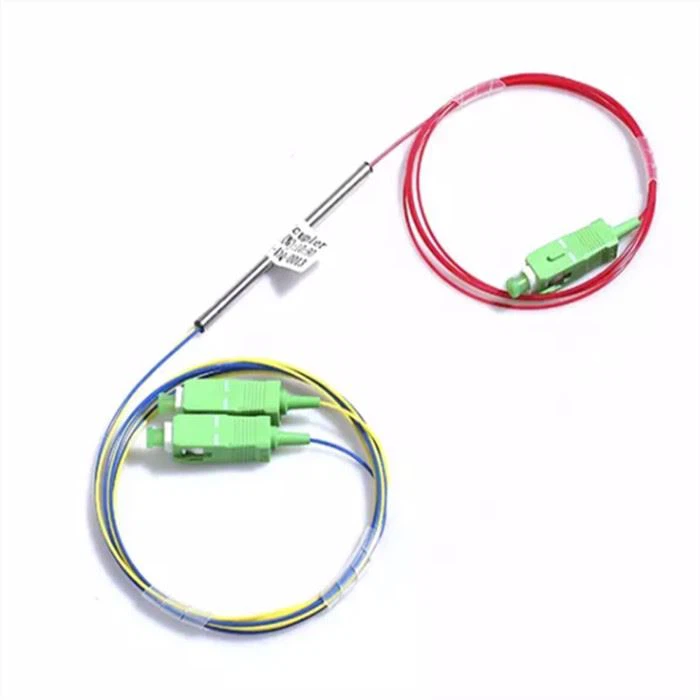

1644055401(1)_

Competitive Advantage

Optical fiber splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

CY provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORErequirements.

1641557668(1)

QQ20190710113603
