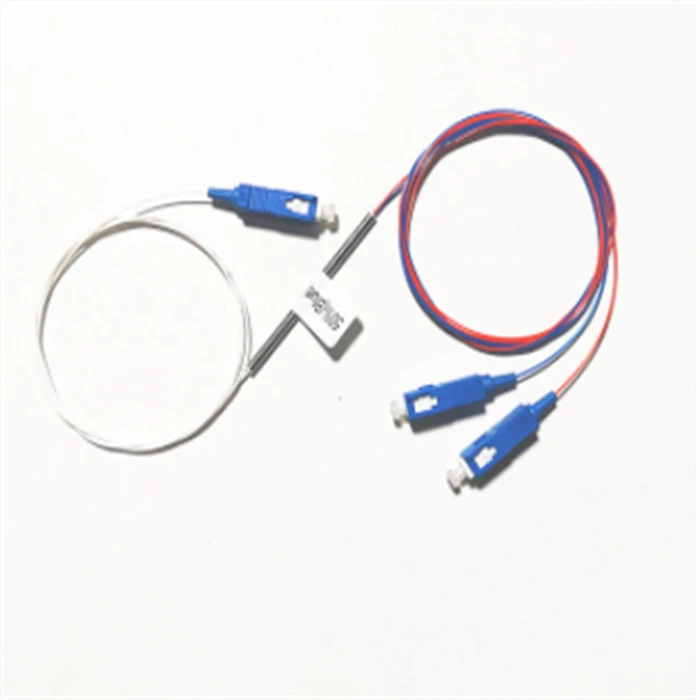

FBT Splitter 1x2 50/50 SC/UPC
CY strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
Description
Single Mode Optical Fiber Splitter
FBT Splitter 1x2 50/50 SC/UPC 0.25, 0.9mm
Specifications
Type | Nx2 N=1, 2 | Nx4 N=1, 2 | Nx8 N=1, 2 | Nx16 N=1, 2 | Nx32 N=1, 2 |
Operating wavelength(nm) | 1310/1550 or 1490 | ||||
Operating bandwidth(nm) | ±40 | ||||
Insertion loss(dB) | ≤3.6 | ≤7.6 | ≤11 | ≤15 | ≤18 |
Typical excess loss(dB) | 0.08 | 0.3 | 0.45 | 0.6 | 0.75 |
PDL(dB) | ≤0.1 | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.6 |
Directivity(dB) | ≥55 | ||||
Operating temperature(℃) | -45～+85 | ||||
Fiber length(meter) | 1meter or customized | ||||
Cable Type(mm) | 0.25, 0.9, 2.0, 3.0 | ||||
Dimensions((WxHxL)(mm) | 85x18x10 | 100x80x10 | 141x115x18 | ||
The above specification is without connector
FBT Fiber Optic Splitter
s
Application
●Telecom network
●Local access network
●CATV system
●Lan
|
●Low excess loss and low PDL
●High back reflection loss vaule
●Customized packaging and configuration
●High Stability and reliability
| Competitive Advantage |
CY strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
| FAQ |
Q1.Can you accept OEM?
A: Yes, we can. We will try our best to meet your customized requirements, such as printing your logo on the product or designing your own package style.
Q2.What's your MOQ?
A: We accept small order.
Q3: How about the lead time?
A: The general lead time is around 5-10 days after your order confirmed. It depends on the order quantity.
