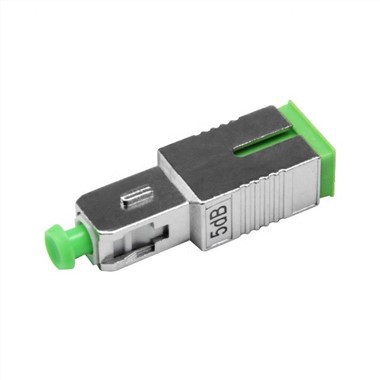

5DB SC Optical Attenuator
Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.And used for the attenuation of the input optical power, avoid optical receiver distortion due to input optical power powerful. The fixed fiber optic attenuator can achieve the dual function of adapter and attenuators.
Description
| Product Description |
SM Fiber Optic SC/APC Plug-in SC Attenuator 1dB 3dB 5dB 10dB 15dB 20dB 25dB 30dB
Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.And used for the attenuation of the input optical power, avoid optical receiver distortion due to input optical power powerful. The fixed fiber optic attenuator can achieve the dual function of adapter and attenuators.
| Features |
1).Low back reflection and Low PDL
2).High precision attenuation value
3).Precision control of attenuation Testing equipment
4).Precision ceramic ferrule
5).FC, SC, ST, LC … optional
6).Plastic or metal housing material
| Specification |
Product type | Coupler Attenuator Male to Female |
| Operation wavelength | SM: 1200 to 1600nm or 1310/1550nm |
| MM: 850nm, 1300nm | |
| Return Loss | ≥ 50 db (PC) |
≥ 55 db (UPC) | |
≥ 65 db (APC) | |
Attenuation Accuracy | +/-0.5 db for 1 to 5db attenuation |
| +/-10% for 6 to 30db attenuation | |
Polarization Dependent loss | ≤ 0.2db |
Mechanical endurance | >1000 |
Maximum optical Input power | 200MW |
Operating Temp Range | -40 to + 80degree |
