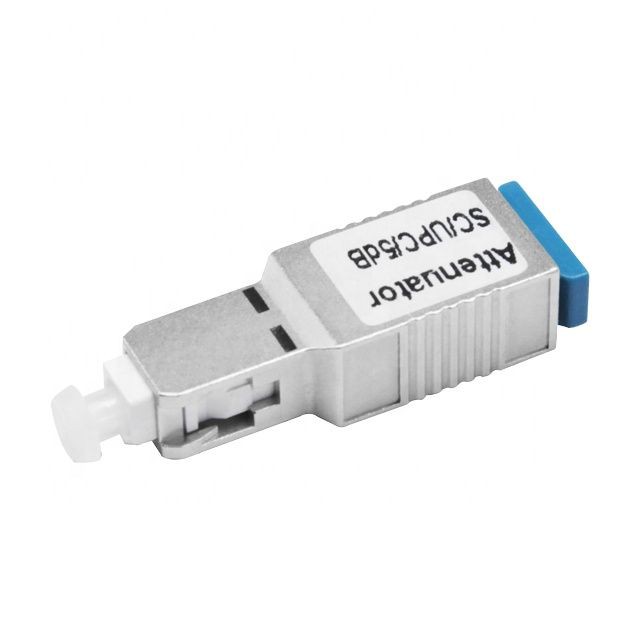

1DB SC Optical Attenuator
The fiber optical patch cord can be customized according to customers'specific requirements (Customized Connector/Length/package...)
Description
| Product Description |
Product Name | Fiber attenuator LC/APC Sc/APC variable fiber optical attenuator |
Modle Number | LC/APC SC/APC Attenuator |
Attenuation range | 1-30dB |
Material | Ceramic ,Matel and plastic |
Fiber Connector | LC |
Fiber Type | SM |
Application | Reduce the power level of an optical signal, either in free space or in an optical fiber. |
Certification | CE and ROHS |
Use | Reduce the power in a optical circuit |
Form of sale | OEM/ODM |
Custom Design | Welcom |
Sample Lead Time | 1-3days |
Sample price | 2 |
Features | High Performance |
Parameter | Unit | Value |
Operating Wavelength | nm | 1310/1550 ± 10 |
Tolerance for 1~5 dB Attenuation | dB | ± 0.5 |
Tolerance for 6~30 dB Attenuation | dB | ± 10 |
Return Loss | dB | > 50 |
Operating Temperature | C | -40° to +75° |
Polarization Dependent | dB | < 0.1 |
Mating Durability | cycle | > 1000 |
| Features |
• Low insertion loss,high return loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specific requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.
| Specification |
Item | value |
Model Number | LC/UPC(Male)-LC/UPC(Female) 5DB LC/UPC(Male)-LC/UPC(Female) 10DB |
Type | Fiber optic attenuator |
Place of Origin | China |
Guangdong | |
Brand Name | AEON |
Use | FTTH Solution |
Warranty Time | 2 years |
Product name | LC/UPC Male-Female Attenuator |
Color | Blue&Green |
Material | PEI |
Keywords | fiber optic LC attenuator |
Model | LC 1DB/3DB/5DB/7DB/10DB/15DB |
Operating Temperature | 40~+85 |
Insertion loss | IL<4.7db... |
MOQ | 50pcs |
Type | Fiber Attenuator |
Application | FTTH FTTB FTTX Network |
| Company Profile |
Hubei Chenyu Optoelectronics Co., Ltd. is an enterprise integrating R&D, production, sales and service. Specializing in the manufacture and sales of optical fiber communication, integrated wiring, and security monitoring products. We focus on providing first-class connectivity solutions, site solutions, data center solutions and professional services for domestic and foreign operators, ICT equipment vendors, and network integrators.
The company's products and solutions are widely used in government, finance, education, public security, medical care, operators, data cloud computing centers, energy and other industries, through a full range of optical fiber cabling solutions, copper cabling solutions, smart home. Solutions, security cable solutions and professional basic network services can flexibly meet the differentiated needs of different customers around the world and the pursuit of rapid innovation.
