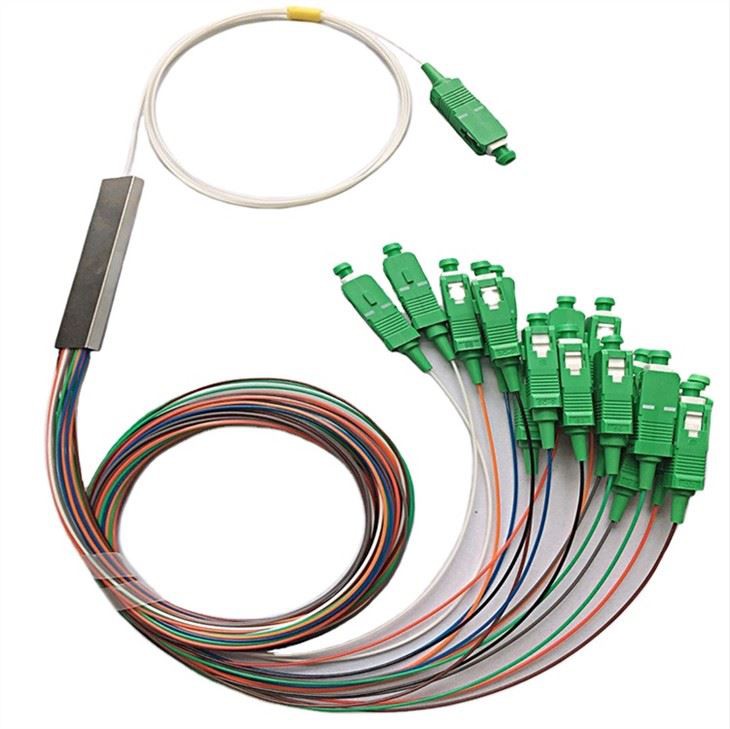

PLC Splitter 1x16 SC/APC
CY strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countri
Description
Product
|
PLC Splitter 1 x 16 SC/APC Optical Fiber Splitter , SFF type PLC splitter
Model Number: PLC Splitter 1*16
Output Connector Type: LC ,ST,SC,FC
Connector: SC/APC
Length: 1m ,1.5m, 2m or customized length
Ferrule Polish: APC,UPC,PC
of PLC Splitter:
Description
PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. Siemax’ PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.
|
1. FTTX networks
2. PON networks
3. CATV links
4. Data Communication
SC/APC Types:
1. Basic type PLC splitter
2. SFF type PLC splitter
3. 900um Fan-out Type PLC Splitter
4. Cassette type PLC splitter Module
5. Rack type PLC splitter Module
6. Tray assembly PLC splitter Module
7. Flat Quick-Connect Termination Type PLC Splitter Module
|
1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. Wide Operation Wavelength
4. Wide Operation Temperature
5. High Stability and Reliability
6. Telcordia GR-1209 and GR-1221 Compliance
7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)
| Specification |
|
Parameter |
Unit |
1×2 |
1×4 |
1×6 |
1×8 |
1×12 |
1×16 |
1×32 |
1×64 |
|
|
Premium Grade |
||||||||||
| Insertion Loss at 23°C |
Typ. |
dB |
3.9 |
6.8 |
9.3 |
10.0 |
12.1 |
13.2 |
16.5 |
20.0 |
|
Max |
dB |
4.0 |
7.0 |
9.6 |
10.4 |
12.6 |
13.5 |
16.8 |
20.5 |
|
|
Channel Uniformity |
Max |
dB |
0.6 |
0.8 |
1.0 |
1.0 |
1.6 |
1.6 |
1.6 |
2.0 |
| PDL |
Typ. |
dB |
0.1 |
0.1 |
0.1 |
0.1 |
0.2 |
0.2 |
0.2 |
0.2 |
|
Max |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
|
Standard Grade |
||||||||||
| Insertion Loss at 23°C |
Typ. |
dB |
4.0 |
7.0 |
9.5 |
10.4 |
12.4 |
13.6 |
17.0 |
20.5 |
|
Max |
dB |
4.2 |
7.3 |
10.0 |
10.6 |
12.8 |
13.8 |
17.1 |
20.8 |
|
|
Channel Uniformity |
Max |
dB |
0.6 |
0.8 |
1.0 |
1.0 |
1.0 |
1.4 |
1.6 |
2.0 |
| PDL |
Typ. |
dB |
0.1 |
0.1 |
0.1 |
0.1 |
0.2 |
0.2 |
0.2 |
0.3 |
|
Max |
dB |
0.2 |
0.3 |
0.3 |
0.2 |
0.3 |
0.3 |
0.3 |
0.5 |
|
|
Return Loss |
Min |
dB |
55 (Premium Grade)/50 (Standard Grade) |
|||||||
|
Directivity |
Min |
dB |
55 |
|||||||
|
Operation Wavelength |
nm |
1260~1650 |
||||||||
|
Operation Temperature |
°C |
-4-~+85 |
||||||||
|
Storage Temperature |
°C |
-4-~+85 |
||||||||
|
Fiber Type |
- |
G.657A or Customized |
||||||||
| Competitive Advantage |
CY strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countri
| FAQ |
1 . How many staff's we have?
Answer: About 150 well-trained staff and engineers.
2 . What is the area of the factory?
Over 2500 square meters
More than 16 non dust productions lines in total
4 production lines for Fiber Optic Cable
3 . What certificate we have?
Answer: ISO 9001: 2008, CPR, UL, RoSH, CE,High and New Tech Enterprise Certficate.
