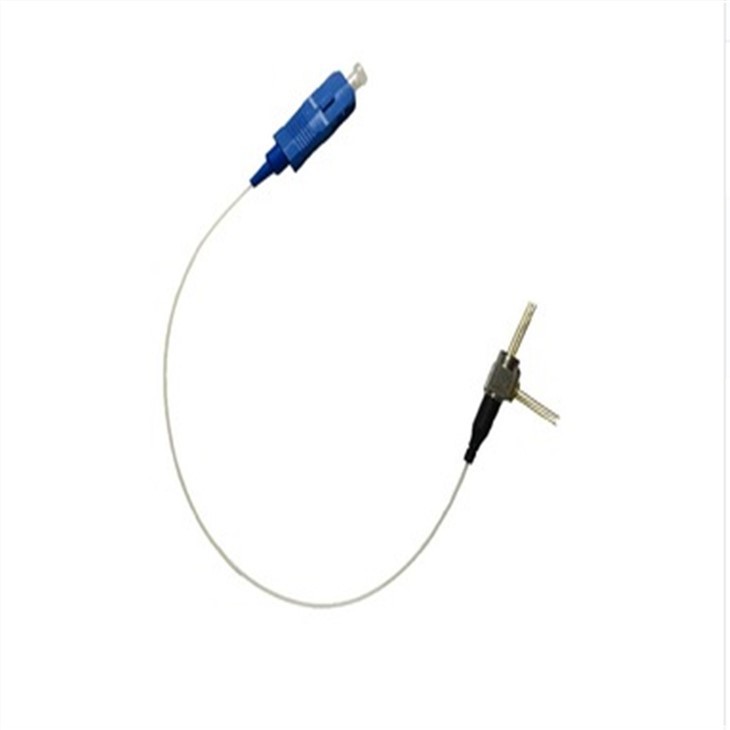

1310nm/1490nm EPON Pigtail
●High reliability
●With the isolator
●Packaged with a back monitor
●Wide operating temperature
●High Output Power
Description
1310nm/1490nm EPON Pigtail
| Feature |
●High reliability
●With the isolator
●Packaged with a back monitor
●Wide operating temperature
●High Output Power
●Digital Optical Communication
| Absolute Maximum Ratings |
Parameter | Ratings | Unit | Conditions |
Storage Temperature | -40~+85 | ℃ | TSTG |
Operating Case Temperature | 0~+70 | ℃ | TOP |
Forward Current(LD) | 100 | mA | If(LD) |
Forward Voltage(LD) | 2 | V | Vf(LD) |
Reverse Current (PD) | 2 | mA | Ir(PD) |
Reverse Voltage (PD) | 15 | V | Vr(PD) |
Soldering Temperature (<10sec.) | 260 | ℃ | Stemp |
| Electrical and optical characteristics |
Parameters | Symbol | Min | Typ | Max | Unit | Test conditions |
Threshold Current | Ith | — | — | 15 | mA | CW |
Optical Output Power | Pf | 300 | — | 800 | uW | CW, If=Ith+20mA, kink free |
Operating Voltage | Vf | — | 1.2 | 1.5 | V | CW |
Central Wavelength | λc | 1290 | 1310 | 1330 | nm | CW |
Spectral Width | Δλ | — | — | 3 | nm | CW |
PD Monitor Current | Im | 100 | — | 1000 | uA | CW, Vr(PD)=5V |
Tracking Error | TE | -1.5 | — | 1.5 | dB | Im = const , Tc = 25°C Tc = 0 to +70°C |
