PLC Splitter 1x2 SC/APC
Fiber Optic PLC Splitter 1x2 SC/APC
G657A1 1650nm SC APC Optical Fiber Splitter 1x2 Plc Splitter
Description

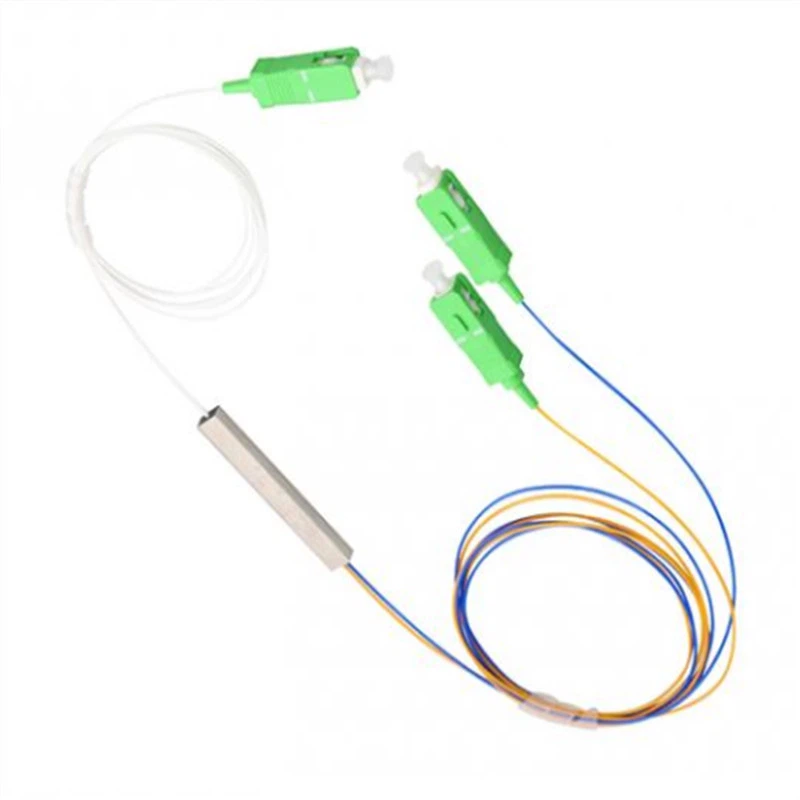

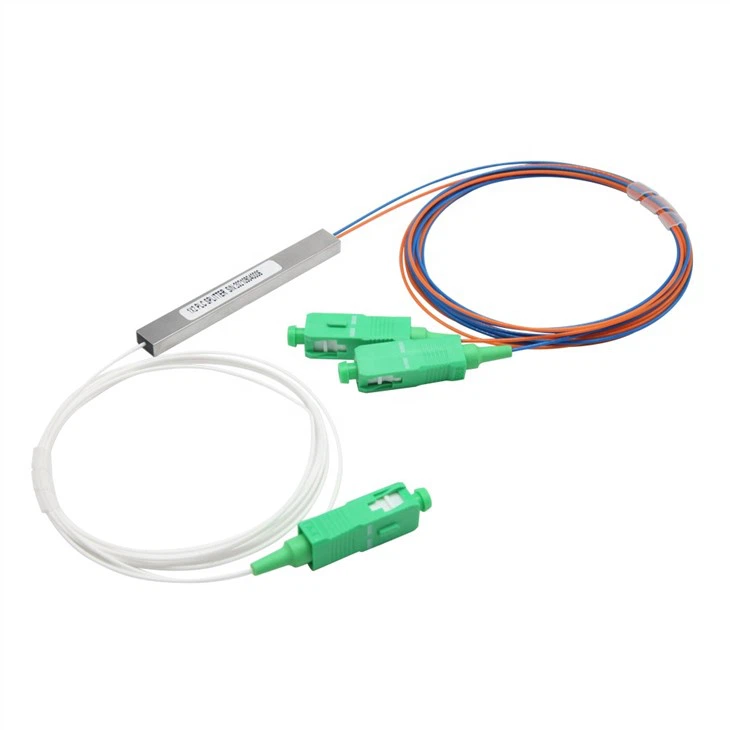

1X2 Sc/APC Fiber Optic PLC Splitter
Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.
Parameters 1×2
Operating Wavelength (nm) 1260~1650
Fiber Type SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade) 4.5/4.2
Loss Uniformity (dB) 0.8
Return Loss (dB) (S/P Grade) 50/55
Polarization Dependent Loss(dB) 0.3
Directivity (dB) 55
Wavelength Dependent Loss(dB) 0.3
Temperature Stability(-40~85 °C)(dB) 0.5
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
Packaging Dimension (mm) (L×W×H) 4×7×60
| Competitive Advantage |
CY strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; And good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
| FAQ |
1 . How many staff's we have?
Answer: About 150 well-trained staff and engineers.
2 . When our company be established?
Answer: We started from year 2008.
3 . What's our main products?
Answer: CY dedicates to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.
4 . What is the area of the factory?
Over 2500 square meters
More than 16 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines
5 . What certificate we have?
Answer: ISO 9001: 2008, CPR, UL, RoSH, CE,High and New Tech Enterprise Certficate.
