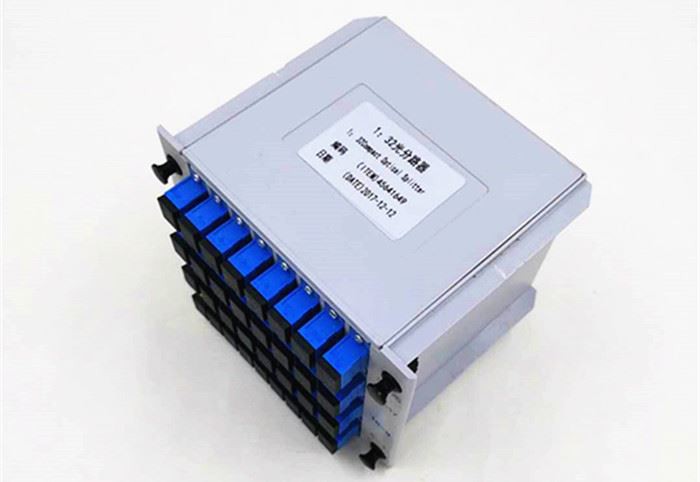

Optical Splitter Box 1x32 Cassette SC/UPC
PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.
Description
Optical Splitter Box 1x32 Cassette SCUPC
| Description |
PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.
| Features |
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
| Application |
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems
|
Types |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
|
Test wavelength |
1310nm |
||||
|
Working wavelength |
1260nm~1650nm |
||||
|
Interface model |
SC/UPC |
||||
|
Insertion loss (dB) (P/S level) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
|
Loss uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
|
Return loss (dB) (P/S level) |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
|
Polarization dependent loss (dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.25 |
|
Directionality (dB) |
55 |
55 |
55 |
55 |
55 |
|
Wavelength dependent loss (dB) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
Temperature stability (dB) |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
|
Features |
Good temperature stability |
||||
FAQ
1. What’s your product quality guarantee policy?
WHB&R: We promise different quality guarantee period for different products, we will be responsible for any quality problems in
guarantee period.
2. Do you offer OEM Service?
WHB&R: We accept OEM, ODM. We will produce according to your requirement and description.
3. How do you ship the goods and how long does it take to arrive?
WHB&R: We usually shipped the goods by DHL, UPS, FedEx or TNT for small weight or volume goods, which take 3-5 days. Airline and
Ocean shipping are also optional for mass goods.
