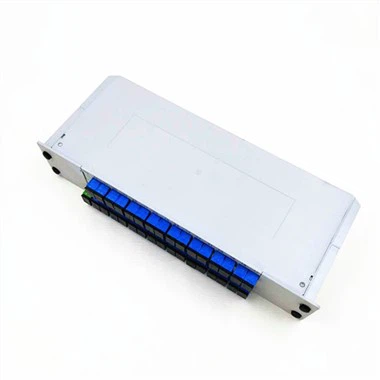

Optical Splitter Box 1x4 LGX SC/APC
All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirment.
Description
Place Of Origin: | Guangdong, China (Mainland) | Brand Name: | CY |
Model Number: | 1*4 PLC Splitter Cassette | Splitter Type: | PLC Tube Type |
High Light: | single mode fiber splitter .fiber optic cable splitter | ||
LGX 1260~1650nm, 1*4 PLC ptical Fiber Splitter Cassette Type
Optical Splitter Box 1x4 LGX SC/APC
Quick Details:
●Model Number: 1*4 PLC splitter cassette
●Splitter type: PLC Cassette Type
●Cassette material: aluminium
●Cassette color: Gray or Ivory white
●Cassette dimensions: 128.5*125*29mm
Product
|
PLC (planar lightwave circuit) splitter is fabricated by using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management. We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirment.
Technical
Specification
Parameter for PLC Splitter | ||||||
Parameter | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
Attenuation Value(dB) | ≤3.7 | ≤7.5 | ≤11 | ≤14.5 | ≤18 | ≤22 |
Loss Uniformity(dB) | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.4 | ≤1.9 | ≤2.5 |
| Return Loss(dB) | APC | ≥60 | ||||
UPC | ≥60 | |||||
PDL(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
Operating Temperature(oC) | -40~85 | |||||
Storage Temperature(oC) | -40~85 | |||||
Operating Bandwidth(nm) | ±40 | |||||
Operating Wavelength(nm) | 1260~1650 | |||||
Competitive advantages
Hubei Chenyu Optoelectronics Technology Co., Ltd. strictly implements the ISO9001 quality management system. The company has good facilities and qualified human resources management personnel to ensure stable product quality and excellent performance; and good after-sales services have won the trust of customers , Products are exported to Europe, America and Southeast Asian countries.
Why choose us:
Q1.What kind of certification do you have?
A: ISO9001,CE,Rohs...
Q2.What about the payment method?
A: We accept T/T.
Q3.What is your delivery time?
A: We generally ship the product within 3~7 days after payment.
Q4.Can you supply customized products and logo?
A: Yes. We supply OEM&ODM service. You can send us your drawing.
