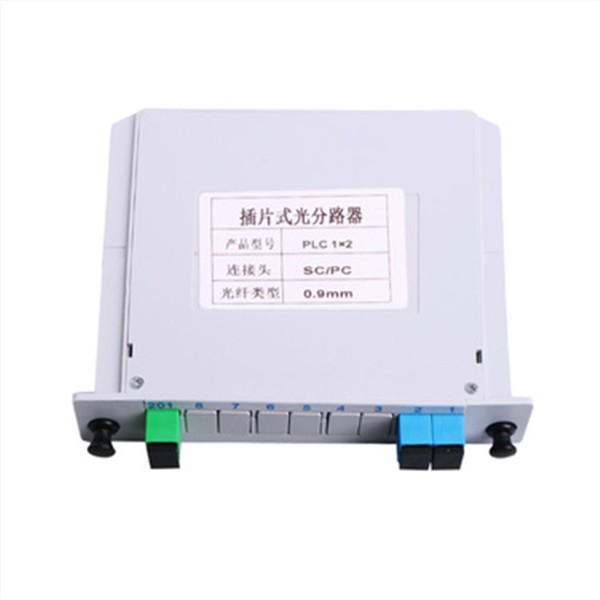

Optical Splitter Box 1x2 Cassette SC/UPC
SUNET provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Description
1*2/1*4/1*8/1*16/1*32/1*64 Optical Splitter Mini Optical Fiber Plc Splitter
Optical Splitter Box 1x2 Cassette SCUPC
Product
|
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. SUNET provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
|
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
s
Application
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems
Types
Bare Fiber type PLC splitter
Steel Tube type PLC splitter
ABS Box Type PLC Splitter
Cassette type PLC splitter Module
Rack type PLC splitter Module
Tray assembly PLC splitter Module
Specifications
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
Operating Wavelength (nm) | 1260~1650 | |||||
Fiber Type | SMF-28e or customer specified | |||||
Insertion Loss (dB)(S/P Grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 |
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
Return Loss (dB) (S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temperature Stability(-40~85 ℃)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Operating Temperature (℃) | -40~85 | |||||
Storage Temperature (℃) | -40~85 | |||||
Packaging Dimension (mm) (L×W×H) | 40×4×4 | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×12×4 |
Competitive advantages
Chenyu Technology Co., Ltd. is a leading enterprise in the development and manufacture of various optical fiber products, mainly supplying indoor and outdoor optical fiber cables, optical fiber jumpers, pigtails, adapters, quick connectors, PLC splitters, WDM/CWDM/DWDM and FTTH series product.
