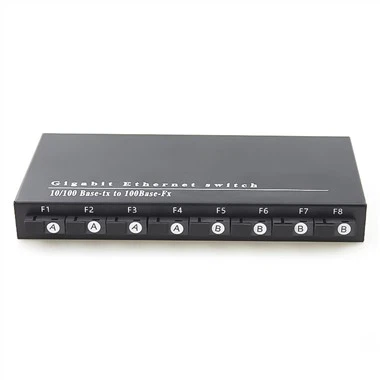

100M 4 Light 2 Electricity Media Converter
Compatible with IEEE802.3u 100Base-Fx/Tx, IEEE802.3 10Base-T, IEEE802.3ab/z, 1000Base-T/SX/LX standard and so on.
Description
100M 4 light 2 electricity media converter
| Product Description |
10/100/1000M to RJ45 Converter Media Converter 8 sfp 2 rj45 Ethernet Media ConverteR
1). Compatible with IEEE802.3u 100Base-Fx/Tx, IEEE802.3 10Base-T, IEEE802.3ab/z, 1000Base-T/SX/LX standard and so on.
2). Support IEEE802.1q VLAN TAG, Spanning tree protocol and so on.
3). The network support 10/100/1000M, Duplex and half-duplex.
4). The network support MDI/MDIX parallel and cross CAT cable.
5). The optical transmission distance up to 100KM.
6). Support 1536Bytes super frame.
7). Support address auto learning.
8). Support hot plug when used in the rack mounted device.
10/100/1000M Dual fiber
Connector type | SC | SC | SC | SC | SC |
Fiber type | Multi-mode | Single-mode | Single-mode | Single-mode | Single-mode |
Wavelength | 850nm | 1310nm | 1310nm | 1550nm | 1550nm |
Max Distance | 62.5µm: 224m | 20Km | 40Km | 60Km | 80Km |
| 50µm: 550m | |||||
Min TX PWR | -11.0dBm | -9.0dBm | -4.0dBm | -8.0dBm | -3.0dBm |
Max TX PWR | -6.0dBm | -5.0dBm | 0dBm | 0dBm | 0dBm |
Sensitivity | < -18dBm | < -21dBm | < -24dBm | < -25dBm | < -25dBm |
Link Budget | 7.0dBm | 12.0dBm | 20.0dBm | 17.0dBm | 22.0dBm |
10/100/1000M single fiber
Connector type | SC | SC | SC | SC |
Fiber type | Single-mode | Single-mode | Single-mode | Single-mode |
Wavelength | 1310/1550nm | 1310/1550nm | 1310/1550nm | 1490/1550nm |
Max Distance | 20Km | 40Km | 60Km | 80Km |
Min TX PWR | -10.0dBm | -4.0/-8dBm | 0/-5.0dBm | -1dBm |
Max TX PWR | -4.0dBm | 0dBm | 3/0dBm | 3dBm |
Sensitivity | < -22dBm | < -25dBm | < -25dBm | < -25dBm |
Link Budget | 12.0dBm | 20/17dBm | 25/20dBm | 24.0dBm |
| Company Profile |
Hubei Chenyu Optoelectronics Technology Co., Ltd. is a high-tech enterprise specializing in the production of optical fibers
Communication products, with nearly 10 years of industry experience. At present, the company has passed ISO9001 certification, has two production bases in Xianning and Zhongxiang, and has a large modern warehouse in Xianning. The company covers an area of 2,000 square meters and has more than 130 employees.
| FAQ |
Q: Can you offer technical support after purchase?
A: Our technical department will be 24h stand by to solve your concerns
Q: Do you accept small quantity order?
A: Yes, we do accept a sample order so customers can test the quality.
Q: What is your lead time for regular items?
A: Normal items, we will have stock to delivery ASAP, for OEM / ODM, PLS feel free to disuse them with our team.
