12 Core Fiber Optic Junction Box
Foclink fiber closures can improve the operation of your network communication system.Closure is suitable for the applications up to 96 single fibers,which can cover most of the applications in the long-distance transmission and local fiber distribution networks, like Fiber To The Home / Fiber To The Curb ...(FTTH/FTTC).
Description

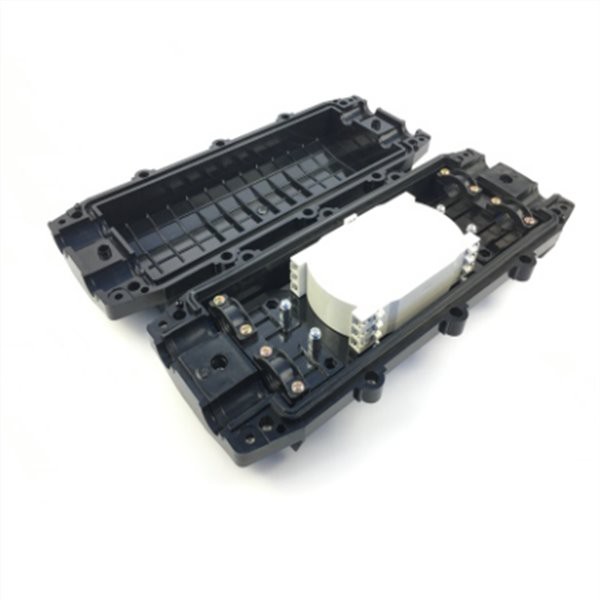

12 Core Fiber Optic Junction Box
OEM Aerial 12 24 48 96 Core Fiber Optic Splice Closure Price Ip66 Junction Box
Fiber optic closure is vertical with 2 inlet and 2 outle.The outer shell is made of enhanced PC engineering plastic, it’s strong and light, can efficaciously prevent the lighting strike, erosion, aging and fire resist, the tray is pulldown, so it’s easy installation, don’t need dismantle other tray, the material of the sealing is silica gel,it can be placed in underground, aerial, wall-mounting, pedestal or direct buried, hand hole-mounting and duct-mounting applications. Foclink fiber closures can improve the operation of your network communication system.Closure is suitable for the applications up to 96 single fibers,which can cover most of the applications in the long-distance transmission and local fiber distribution networks, like Fiber To The Home / Fiber To The Curb ...(FTTH/FTTC).
| Features |
●Having good mechanical performance, strong bad weather resistance capacity as well as electric features by use of high quality polypropylene together with thermal aging additive
●Made of material with good capability of outdoor environment resistance and high durability
●Having reliable cable fixing and grounding facilities
●Using self-adhesive isolative tape and glue belt to seal
●To use rotating method to connect fiber organizer cassette result in easy installation
●Mechanical design suitable for installing, fiber splicing storage and cable connection
●Compact and tight
| Technical Parameter |
Mains for fiber optic splice closure
●Applicable environment temperatures: -40°C~+65°C
●Air pressure: 70~106Kpa
●Pull-out strength≥1000N, compressive force to shell≥2000N , impact: 16N.m
●Bending force to fiber cable: 150N (±45°), torsion force to fiber cable: 50N.m (±90°)
●Tightness: no pressure drop within the enclosure pressurized to 60Kpa at 70°C for 100 hours
●Insulation resistance≥2×104MΩ,resistance to 15KV/min without break down
●Life expectancy: 25 years
Dimension ( mm ) | 430×190×110 |
Weight ( Kg ) | 3.5 |
Cable Diameter (mm) | Φ7-Φ18 |
Cables Entry & Exit | 2 & 2 |
Max Capacity of Cores Per Splice Tray | 12 (Single)/24 (Single) |
Max Capacity of Splice Trays/ Closure | 5 (12cores/tray) / 4 (24 cores/tray) |
Max Capacity of Cores | 60 Cores (12cores/tray) / 96 Cores (24 cores/tray) |
Sealing Structure of Shell | Sticky Cincture or Silicon Gum Material |
| Company Profile |
Hubei Chenyu Optoelectronics Co., Ltd. is one of the leading manufacturers of cables and telecom accessories. We have over 10 years experience in this line. Our factory has more than 10 production lines and 140 employees.
Our production complies with ISO9001. Professional team, strong factory and strict quality control give
To provide our customers with the best service and quality assurance for each order.
Our products are widely installed in telecommunications companies and many dealers around the world.
We export to more than 70 countries
