GYFTY 96 Core Optic Cable
With unique flexural optical fibers, which provide greater bandwidth and enhance network transmission functions.
Description

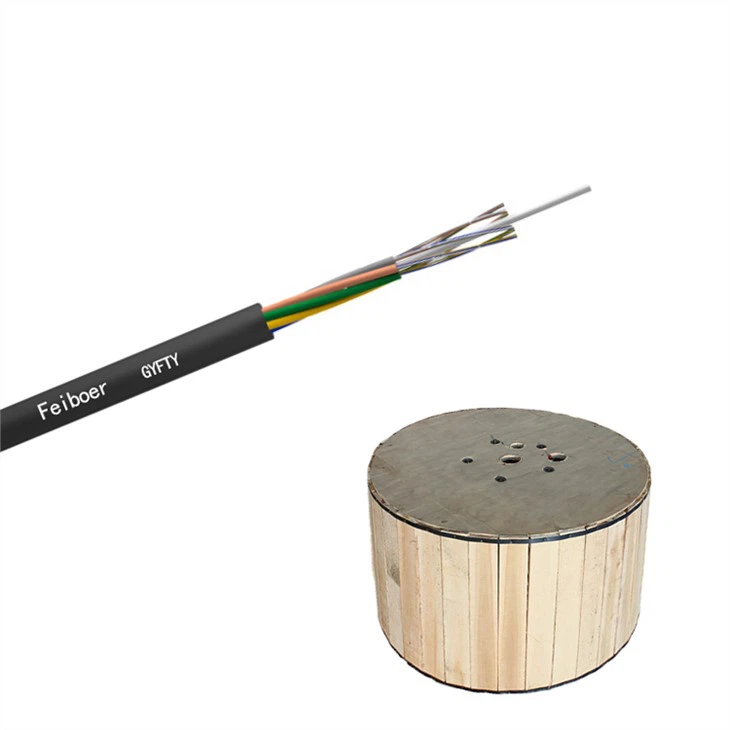

GYFTY 96 Core Optic Cable
| Product display |
With unique flexural optical fibers, which provide greater bandwidth and enhance network transmission functions.
Double parallel FRP or steel wires with good compressive properties and protect optical fibers.
Simple in structure, light in weight and universally used.
A single steel wire or stranded wire with additional reinforcing elements to make the cable with good anti-tensile properties.
Unique groove design, easy to be peeled, easy to be connected,installed and maintenance.
LSZH sheath is good for environmental protection.
| Product Parameters |
cores No | OD (outer dia.) | Weight kg/km | Tensile Strength Long /Short Term | Crush Resistance Long/Short Term N /100mm | Bending Radius |
1 | 2.0x5.0 | 20 | 100/200 | 1000/2200 | 10D/20D |
2 | 2.0x5.0 | 20 | 100/200 | 1000/2200 | 10D/20D |
4 | 2.0x5.0 | 20 | 100/200 | 1000/2200 | 10D/20D |
6 | 2.0x5.0 | 21 | 100/200 | 1000/2200 | 10D/20D |
8 | 2.0x5.0 | 23 | 100/200 | 1000/2200 | 10D/20D |
12 | 2.0x5.0 | 25 | 100/200 | 1000/2200 | 10D/20D |
Cable information | |||||
No.of Fiber cores | 4 | 12 | 24 | 96 | 288 |
No.of tube | 1Tubes | 2Tubes | 4Tubes | 8Tubes | 24Tubes |
No.of tube/tube | 4 | 6 | 6 | 12 | 12 |
Cable Outside Diameter | Nom.9.5mm | 9.5 | 9.5 | 14.6 | 21.5 |
Cable Weight(kg/km) | 80 | 80 | 80 | 220 | 310 |
Loose Tube Material | PBT(Polybutylene terephthalate | ||||
Central Strength Member | Steel wire Strength | ||||
Outer Sheath | Nom.1.8mm Thick.Black MDPE | ||||
Mechanical Environmental Performance | |
Tensile Strength | Long term:600N Short Term:1500N |
Crush Resistance | Long term:300N Short Term:1000N |
Bending Radius | Long term:10D. Short term 20D |
Storage Temperature | -20°-+60° |
Optical fiber performance | |
Fiber type | G652D.125+/-1.0um |
Mode field Diameter | 9.2+-0.2um at 1310nm |
Cladding Diameter | 125+-1um |
Cladding Non-Cirularity | ≤1% |
Coating Diameter | 245+-10um |
Attenuation Coefficient | ≤0.36dB/km at 1310nm , ≤0.22dB/km at 1550nm |
Chromatic Dispersion | ≤3.5ps/nm/km at 1285-1330nm , ≤18ps/s/nm/km at 1550nm |
Zero Dispersion | 1300-1322nm |
PMD Coeffcient | ≤0.2ps/km |
| Company Profile |
CY strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
| FAQ |
Q1: How the warranty for products ?
A: 10 years,and maintance for whole life
Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.
Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
