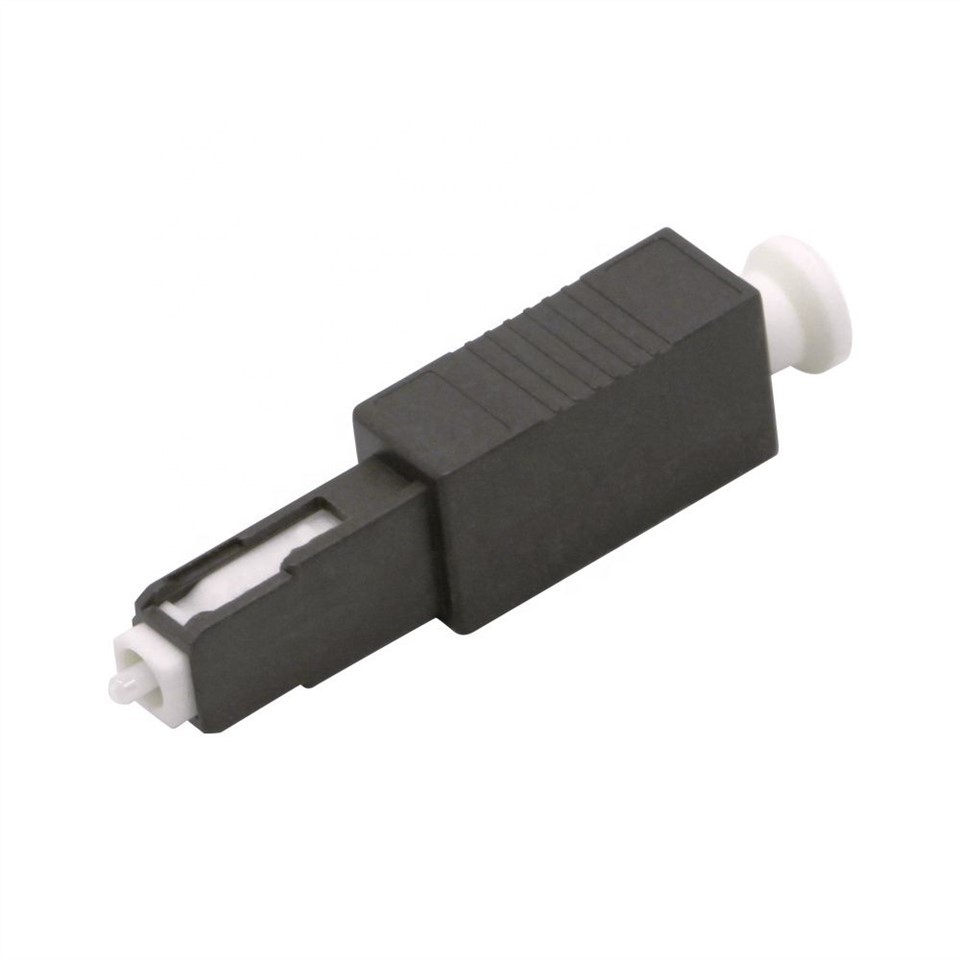

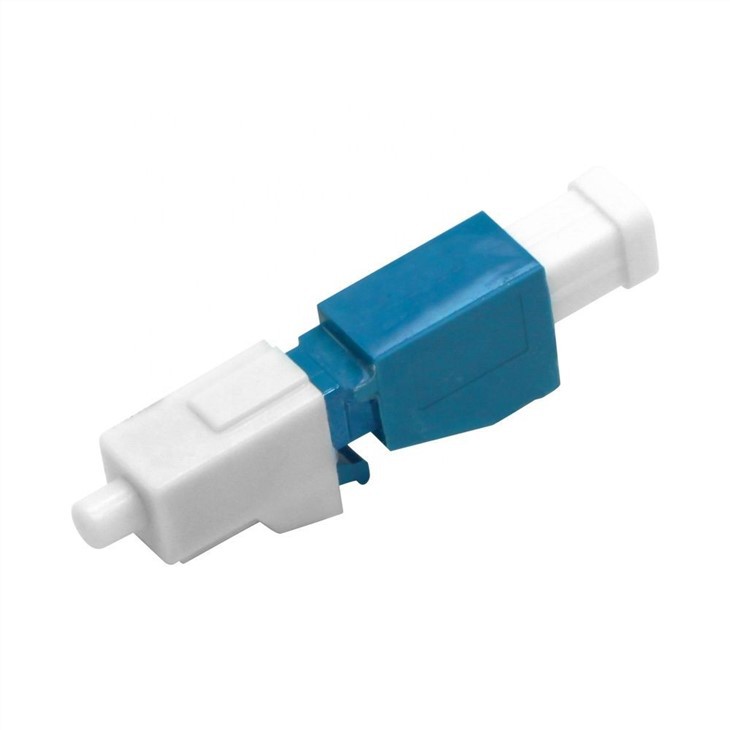

7DB LC Optical Attenuator
Optical fiber communication systems, optical fiber CATV and high power optical measurement device are used in input optical power attenuation, which avoids the distortion of optical receiver caused by strong input optical power.
Description
| Product Description |
Fiber optical attenuator as a kind of optical passive device is used in optical communication system, debugging the optical power and the calibration correction of optical instrument, attenuating fiber optic signal. It is made of attenuated fiber which includes metal ion and can adjust the light power to the required level. Optical fiber communication systems, optical fiber CATV and high power optical measurement device are used in input optical power attenuation, which avoids the distortion of optical receiver caused by strong input optical power.
Name: | Fiber Optic Attenuator |
Type: | LC |
Standard: | IEC, RoHS |
Color: | Blue, Green |
Fiber Mode: | SM |
Sleeve: | Ceramic |
Environment | Yes |
| Features |
• Low insertion loss,high return loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• 100% NEW raw material and well quality control ensure the best life time.
| Specification |
Item | Unit | Parameter |
Operating Wavelength | Nm | 1310-1550 |
Attenuation Range | dB | 1-10dB(1dB step), 15, 20, 25, 30dB |
Return Loss | dB | PC:≥50; UPC:≥55; APC:≥60 |
Attenuation Tolerance | dB | ≤1.0(11-30dB) |
Working Temperature | ℃ | -25~75 |
Storage Temperature | ℃ | -40~85 |
