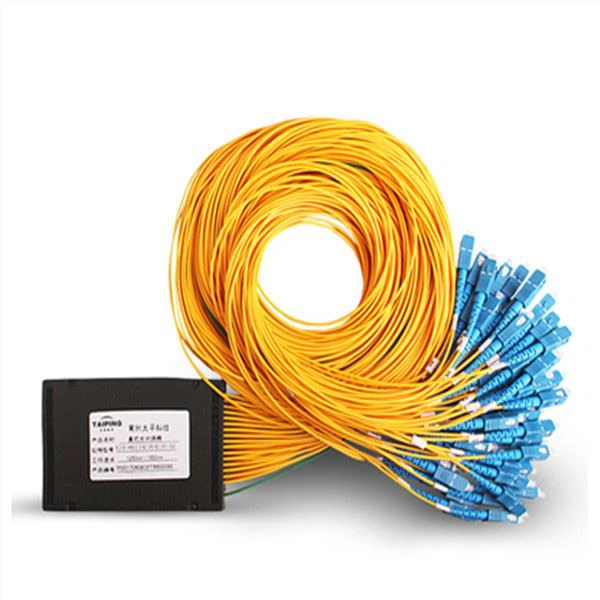

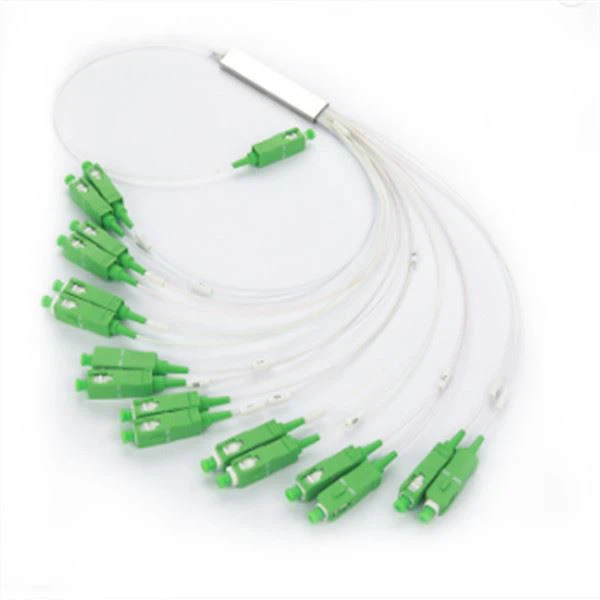

Manufacturer 1X2, 1X4, 1X8, 1X16, 1X32 1X64 Fiber Optic PLC Splitter
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths.
Description
Perfect management system and realistic and innovative technology make our Outdoor Terminal Box 8 Core, FTTH Optical Quick Connector SC APC, PLC Splitter 1x64 SC APC meet the needs of customers at home and abroad in terms of cost performance. Whether you are a small business or a multinational corporation, we can provide solutions to all your international trade needs. Our company has a complete and scientific enterprise management mechanism, strict and perfect quality management system, and good production equipment. We have established a strict management system and system to improve product quality and reduce production costs, so that we can invest more money in the research and development of new products to achieve sustainable long-term development.

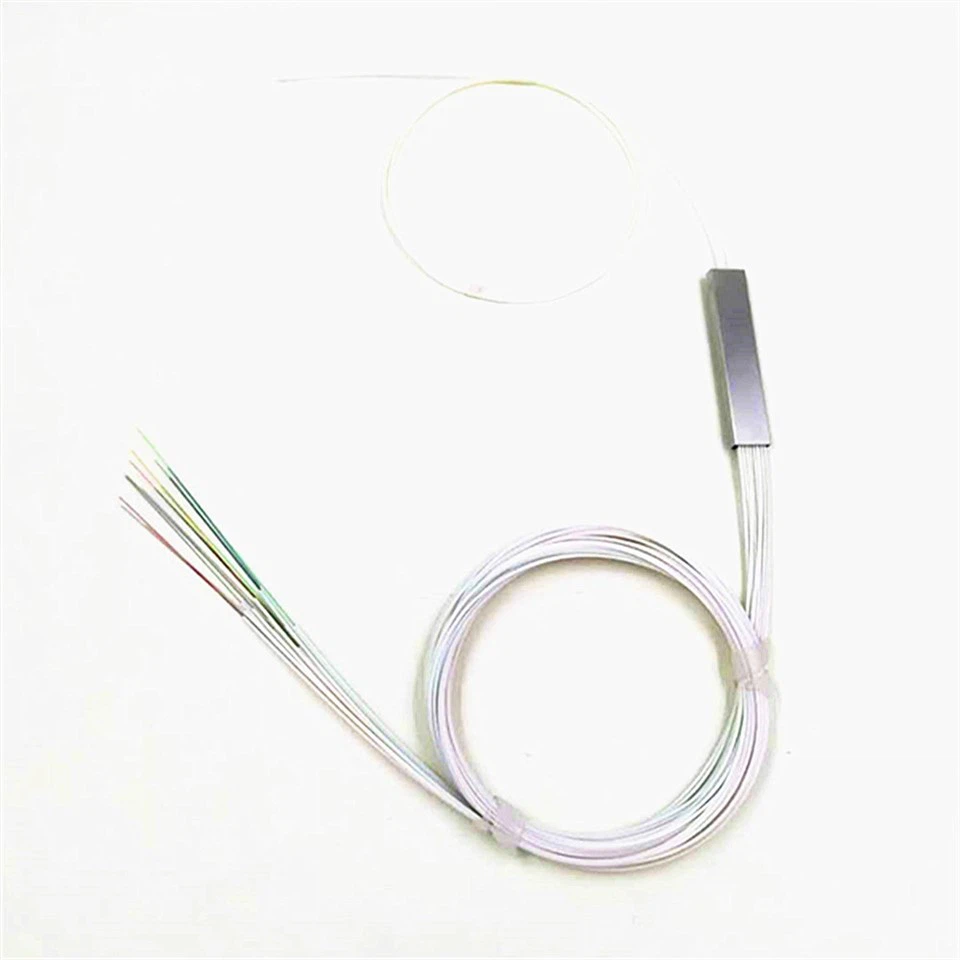

1x64 PLC Splitter Mini Type Gpon Epon
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.
| Application |
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
Parameter/Type | Nx2(N=1or2) | Nx4(N=1or2) | Nx8(N=1or2) | Nx16(N=1or2) | Nx32(N=1or2) | Nx64(N=1or2) |
Fiber | 9/125 um SMF-28e or customer appoint | |||||
Operating Wavelength(nm) | 1260~1650(nm) | |||||
Insertion Loss | ≤3.9dB | ≤7.1dB | ≤10.3dB | ≤13.3dB | ≤16.3dB | ≤19.8dB |
Loss Uniformity(dB) | ≤0.6dB | ≤0.6dB | ≤0.8dB | ≤1.2dB | ≤1.5dB | ≤2.0dB |
Polariation Dependent Loss | ≤0.15dB | ≤0.15dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB |
Return Loss | UPC≥50dB APC≥60dB | |||||
Directivity | ≥55dB | |||||
Working Temperature(℃) | -40°C to +85°C | |||||



| FAQ |
Q1: How the warranty for products ?
A: 10 years,and maintance for whole life
Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.
Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
At present, our company is in a good production and operation situation, and there is a high demand for our Manufacturer 1X2, 1X4, 1X8, 1X16, 1X32 1X64 Fiber Optic PLC Splitter in the market. We have formed a world-leading technology system and a service culture that makes customers satisfied with our heart. We have a team of excellent quality personnel and management team with the spirit of market development.
