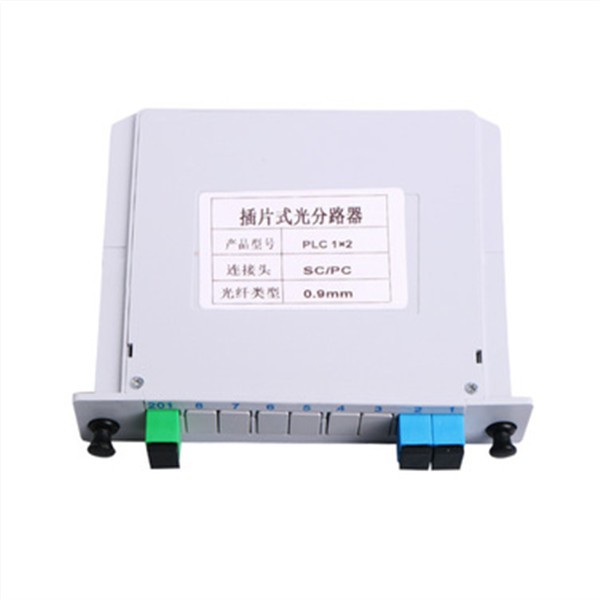

Optical Splitter Box 1x2 LGX SC/UPC
LGX 1260~1650nm, 1*2 PLC ptical Fiber Splitter Cassette Type
Optical Splitter Box 1x2 LGX SC/UPC
Description
Brand Name: | CY | Place Of Origin: | Hubei, China (Mainland) |
Model Number: | 1*4 PLC Splitter Cassette | Splitter Type: | PLC Tube Type |
High Light: | multimode fiber splitter,single mode fiber splitter | ||
LGX 1260~1650nm, 1*2 PLC ptical Fiber Splitter Cassette Type
Optical Splitter Box 1x2 LGX SC/UPC
Quick Details:
●Model Number: 1*2 PLC splitter cassette
●Splitter type: PLC tube type
●Cassette material: aluminium
●Cassette color: Gray or Ivory white
●Cassette dimensions: 128.5*125*29mm
|
1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. Wide Operation Wavelength
4. Wide Operation Temperature
5. High Stability and Reliability
6. Telcordia GR-1209 and GR-1221 Compliance
7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)
s:
Application
1. FTTX networks
2. PON networks
3. CATV links
4. Data Communication
Technical
Specification
Parameter for PLC Splitter | ||||||
Parameter | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
Attenuation Value(dB) | ≤3.7 | ≤7.5 | ≤11 | ≤14.5 | ≤18 | ≤22 |
Loss Uniformity(dB) | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.4 | ≤1.9 | ≤2.5 |
| Return Loss(dB) | APC | ≥60 | ||||
UPC | ≥60 | |||||
PDL(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
Operating Temperature(oC) | -40~85 | |||||
Storage Temperature(oC) | -40~85 | |||||
Operating Bandwidth(nm) | ±40 | |||||
Operating Wavelength(nm) | 1260~1650 | |||||
Competitive advantages
Hubei Chenyu Optoelectronics Technology Co., Ltd. strictly implements the ISO9001 quality management system. The company has good facilities and qualified human resources management personnel to ensure stable product quality and excellent performance; and good after-sales services have won the trust of customers , Products are exported to Europe, America and Southeast Asian countries.
| FAQ |
Q1.What are your payment terms?
A: We accept 30% T/T deposit, and the balance payment will be paid before delivery.
Q2. How do you ship the items to me?
A. Courier, such as DHL,UPS, Fedex, TNT, Ocean ship, it depends on your choice.
Q3.What's the warranty?
A. 3 year for most of our products.We assure that our products are of high quality with good raw material, strict QC and related certificate.
