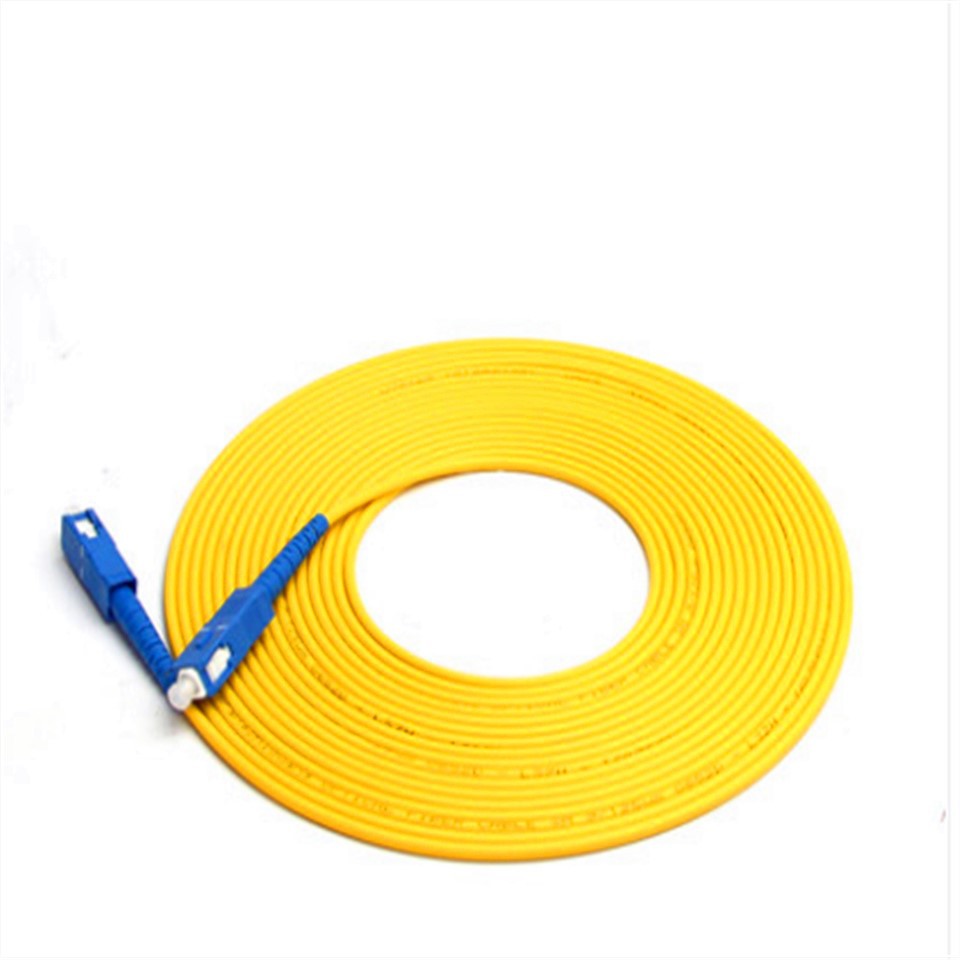

Fiber Optic Jumper SC/UPC
We can provide a full range of optical fiber connectors according to customer needs, From single-fiber optical connectors to high-density multi-fiber optical connections, All products of the company meet or exceed all industry standards in insertion loss and return loss. The optical cable can provide simplex, duplex, and mini-dual parallel, and the connector can provide SC / FC / LC / ST / MU / MT-RJ / E2000 / FSMA and so on.
Description
Manufacturing FTTH SC UP C LC/ UPC Single Mode sm Simplex fiber optic Cable patch cord pigtail
Fiber Optic Jumper SC/UPC
| Product Description |
Manufacturing FTTH Solution Low Insertion loss LSZH LC/ UPC Single Mode sc sm Simplex Jumper Cable patch cord pigtail
Optical cable Pigtail fibers and Jumper wires
We can provide a full range of optical fiber connectors according to customer needs, From single-fiber optical connectors to high-density multi-fiber optical connections, All products of the company meet or exceed all industry standards in insertion loss and return loss. The optical cable can provide simplex, duplex, and mini-dual parallel, and the connector can provide SC / FC / LC / ST / MU / MT-RJ / E2000 / FSMA and so on.
| Product Characteristics |
●Low insertion loss and high return loss
●Three face grinding methods: PC, UPC, AP C
●Mechanical durability 500 times
●Outer sheath material: PVC, LSZH, etc.
●Optical cable materials meet OFNR, OFNP flame retardant grades
●Meet Rosh standards
| Structural Parameter |
Fiber Optic Connector Type | SC/FC/LC/ST/MU/MT-RJ/E2000/FSMA | |
optical fiber | Single mode | Multimode |
Insertion loss(dB) | Typical value 0.20,Max value 0.30 | Typical value 0.20,Max value 0.30 |
Return loss(dB) | PC≥45,UPC≥55,A PC≥60 | NA |
working environment (℃ ) | -40 ~ +75 | -40~ +75 |
Environmental protection | RoHS Compliant | RoHS Compliant |
| Company Profile |
About us: Chenyu Optoelectronics Technology Co., Ltd. (CY for short) is a high-tech joint venture specializing in the simultaneous production, development and sales of passive optical components, optoelectronic transmission equipment and CATV in line with international advanced technologies.
CY's production equipment and testing instruments are imported from the United States, Japan, Canada and Taiwan. In addition, APT adopts advanced production technology, international management model and supervision system. There are also a group of experienced talents in global optical communication, optoelectronic technology and CATV gathered in APT. So we will definitely provide customers with competitive products
